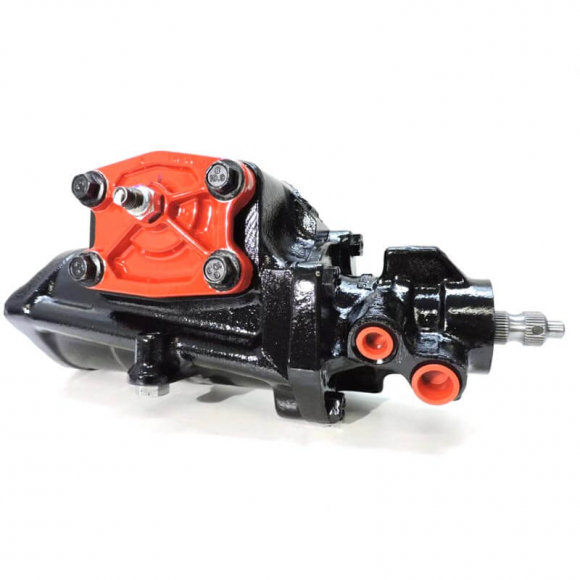

The RedHead 2764 is a remanufactured steering box for a 1997–2000 Super Duty with a 32-spline sector and a 4-bolt cover. It is the box only. The 36-spline box is 2764BS. A core charge applies.

A 1999 or 2000 F-250 and F-350 can have either spline count. Count the peaks between the master splines before you order. Eight peaks between each of the four master splines is 32. Nine is 36, and that truck takes 2764BS. RedHead builds it stronger than the factory gear and it bolts in. The pump and the Pitman arm are not included. The warranty is 1 year, unlimited miles.

It fits 1997–2000 F-250 and F-350 trucks with the 32-spline sector and the 4-bolt cover, plus some 2WD Excursions and E-Series vans with that shaft.

Fitment

• 1997–2000 Ford F-250 and F-350
• 32-spline sector
• 4-bolt cover
• Remanufactured
• Core charge applies
• 1-year warranty
• Pump not included

A 1997 truck can also have a 2-bolt cover. Match the cover and the spline, not just the year.
