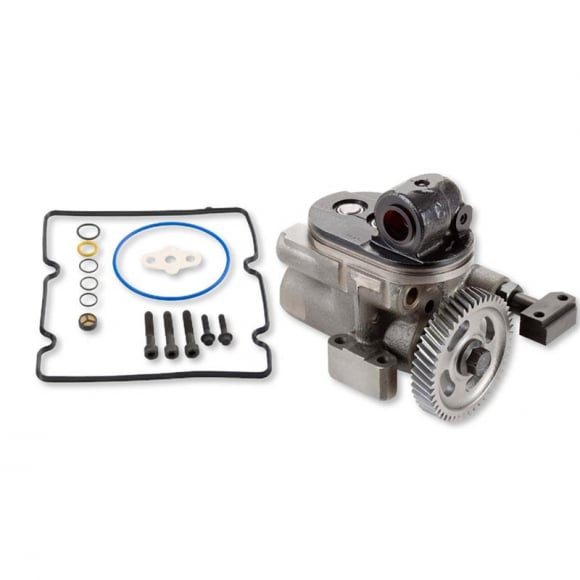

Alliant Power 6.0L Powerstroke Remanufactured High-Pressure Oil Pump (AP63661)

The high-pressure oil pump supplies the oil pressure the 6.0L Powerstroke uses to fire its injectors. The Alliant Power AP63661 is a remanufactured replacement for the late-style cast-iron HPOP used on 2004.5 and later 6.0L engines, and it comes with an installation kit.

Key Benefits & Features

• Remanufactured by Alliant Power: Alliant Power AP63661 remanufactured high-pressure oil pump for the Ford 6.0L and Navistar VT365.
• Fit Tested: Alliant performs a fit, form and function test to confirm the pump meets or exceeds original equipment standards.
• Replaces: Ford 5C3Z-9A543-ARM, 5C3Z-9A543-C, 5C4Z-9A543-A and 5C4Z-9A543-B; Motorcraft HPP-12-RM; Navistar 1882919C92.
• What's in the Box: (1) Alliant Power AP63661 remanufactured high-pressure oil pump and (1) installation kit.

Fitment

• 2004.5–2007 Ford F-250, F-350, F-450 and F-550 Super Duty 6.0L Powerstroke Diesel
• 2004.5–2005 Ford Excursion 6.0L Powerstroke Diesel
• 2004.5–2010 Ford E-350 / E-450 Super Duty 6.0L Powerstroke Diesel vans and 2004.5–2005 E-350 Club Wagon
• Late 6.0L engines with the cast-iron HPOP only

Tech & Installation Notes

• 2004 Trucks: Some 2004 6.0L engines use the earlier round aluminum HPOP. Check which pump your engine has before ordering.
• STC Fitting: The snap-to-connect (STC) fitting is a known 6.0L failure point. To replace it while the pump is out, the Alliant AP0098 installation kit includes an updated STC fitting.
• Related Parts: If the pump cover is damaged, Ford 5C3Z-9G805-C is the replacement cover.
