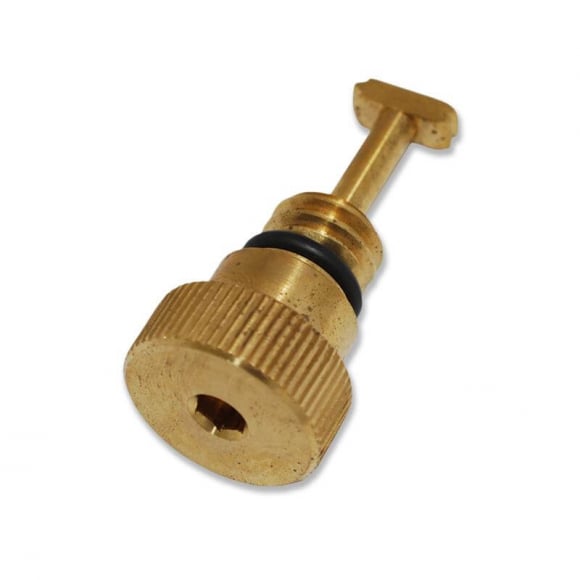

The Ford 6E7Z-9C082-A Horizontal Fuel Conditioning Module (HFCM) Water Separator Drain Plug is the genuine Motorcraft/Ford OEM updated service replacement engineered specifically for 2003–2007 Ford Super Duty trucks and Excursions equipped with the 6.0L Powerstroke diesel engine. Released by Ford to replace the troublesome early factory flush-mount Allen plug, this updated OE plug features an extended, ribbed thumb-knob profile with an integrated drain stem, allowing effortless tool-free water draining while deflecting fluid straight into your catch pan instead of splashing across the front driveshaft.

Quick Specs & Kit Inclusions

• Application: HFCM (Horizontal Fuel Conditioning Module) primary water-in-fuel (WIF) drain port
• Operation Style: Tool-free ergonomic thumb-turn grip with non-slip tactile ribs
• Deflector Design: Extended retention snout design wicks draining fuel and water cleanly away from chassis components
• Sealing Interface: Includes factory-installed, high-temperature fluorocarbon (Viton) fuel-resistant O-ring seal
• Manufacturing Standard: Genuine Ford Original Equipment Manufacturer (OEM) updated part
• Emissions Status: 50-state legal (direct OE replacement part)
• Direct Interchange Part Numbers: Ford 6E7Z-9C082-A, Navistar 2589259C91
• What's in the Box: (1) Genuine Ford Upgraded HFCM Water Separator Drain Plug with Pre-Installed Viton O-Ring

Problem Solved: Curing Stripped Allen Plugs & Messy Driveshaft Spills

The original factory drain plug on early 6.0L Powerstroke HFCM units featured a shallow, 6mm internal hex socket made of soft alloy. Road salt, grime, and galvanic corrosion consistently seized these plugs, causing the Allen socket to round out during routine 30-day water-in-fuel drain intervals. Once stripped, servicing the water separator required vice grips or complete manifold plate removal. Furthermore, the early flush-plug design allowed fuel to pour directly onto the front 4x4 driveshaft and frame rail, creating severe fluid splatter. The genuine Ford 6E7Z-9C082-A upgrade eliminates both headaches: its oversized knurled thumb head allows clean manual operation without tools, while its extended body directs effluent straight into a drain container.

Fitment

• 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-450 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-550 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2005 Ford Excursion 6.0L Powerstroke Turbo Diesel

Safety & Workspace Setup: Park the truck on a level surface, engage the parking brake, and switch off the ignition. Position a drain pan directly beneath the HFCM mounted on the inside of the driver-side frame rail beneath the driver floorboard. Old Plug Removal: Clean road grit from the HFCM manifold plate using brake cleaner. Remove the old drain plug (using a 6mm Allen wrench or extraction tool if rounded). Allow all accumulated water and diesel fuel to evacuate completely into the drain pan. Manifold Port Inspection: Inspect the female M14 threads and O-ring sealing chamfer on the HFCM housing face. Wipe the female port threads with a clean, lint-free cloth to remove sediment, road salt crystals, and old seal residue. O-Ring Lubrication: Verify the factory Viton O-ring is properly positioned on the shoulder of the Ford 6E7Z-9C082-A plug. Apply a thin coating of clean diesel fuel or motor oil to the O-ring to prevent scuffing or binding during installation. Thread Engagement: Align the plug squarely with the port and thread it clockwise by hand. Take care to ensure smooth initial thread engagement to avoid cross-threading into the aluminum HFCM cover. Torque Target: Tighten the plug hand-tight using the knurled thumb wings until the rubber O-ring fully seats against the chamfer (snug by hand to approximately 35–45 in-lbs / 4–5 Nm). Do not use pliers, vice grips, or wrenches on the plastic wings, as excessive mechanical leverage will fracture the thumb tabs. System Priming & Leak Verification: Turn the ignition key to the "RUN" position for 30 seconds without cranking the engine to allow the electric fuel pump to refill the HFCM and restore pressure. Repeat this key cycle 2 to 3 times. Inspect the drain plug face and perimeter to verify a completely leak-free seal before operating the vehicle.
