Factory valve springs can let the exhaust valves float when an exhaust brake builds backpressure or when governor springs let the P7100 rev past stock. Upgrade your 1994-1998 Dodge Ram 12 valve Cummins with Pacbrake HP10246 so the valvetrain keeps up.

Spring rate: Heavy duty Cummins OEM 3916691 white stripe valve springs at 60 lb, the rate required for exhaust brake use and suggested for any governor spring install. No core charge applies to this part.

Key Features & Benefits

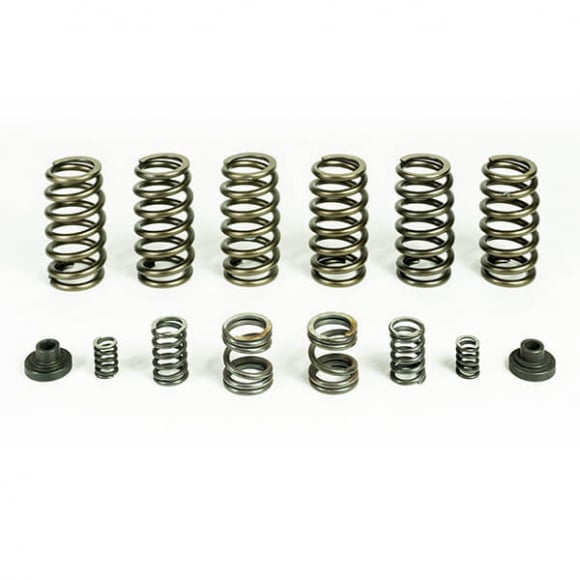

• What's in the kit: 6 heavy duty valve springs plus the governor spring kit.
• Governor springs: Parts to set the Bosch P7100 for either 3000 or 4000 rpm, so the engine keeps fueling higher in the rev range for towing and manual transmission trucks.

Technical Specifications

• Manufacturer/Brand: Pacbrake
• Part Number/SKU: HP10246 (pacHP10246)
• Product Type: Valve & Governor Spring Kit (6 Springs)
• Truck Compatibility: 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and Bosch P7100 injection pump
• Engine Platform: 5.9L 12V Cummins
• Core Requirement: No core required

Vehicle Fitment & Technical Installation Notes

Fits 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and Bosch P7100 injection pump.

Installation Tip: Since the springs change with the head on the engine.
