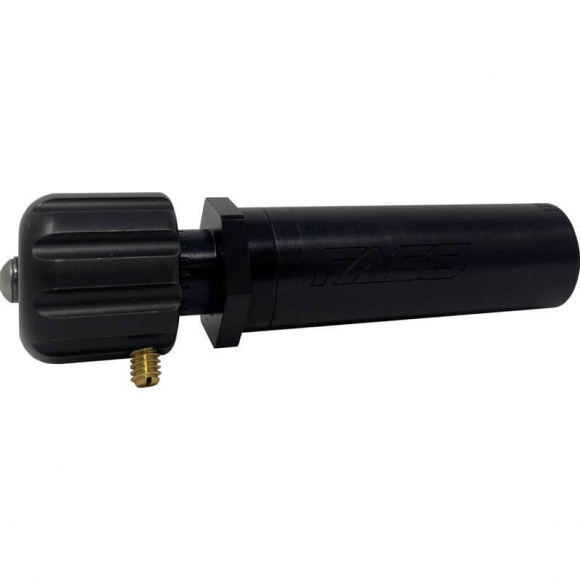

The FASS FPR2001 is a universal high flow adjustable fuel pressure regulator for gas or diesel applications. It is the same regulator FASS supplies with its Competition Series systems.

It handles up to 600 GPH and adjusts from about 0 to 100 PSI with a clicker style knob that locks in place. It can be retrofitted to FASS Titanium and Titanium Signature systems or used with mechanical pumps.

• 0-100 PSI Adjustment: Clicker knob with adjustable detent lock.
• 600 GPH Capacity: Handles high flow fuel systems.
• Billet Aluminum: 6061 billet, black hardcoat anodized.
• -10 O-Ring Ports: Inlet and outlet use -10 O-ring ports.
• Gas or Diesel: Works with electric or mechanical pumps.

Technical Specifications

• Part Number: FPR2001 (FPR-2001)
• Adjustment Range: Approximately 0-100 PSI
• Max Flow: 600 GPH
• Ports: -10 O-ring inlet and outlet
• Material: 6061 billet aluminum
• Core Requirement: No core required

Vehicle Fitment & Technical Installation Notes

• Fitment: Universal for gas or diesel fuel systems, including FASS Titanium and Titanium Signature Series retrofits
• Installation Tip: Once you set pressure with the clicker knob, lock it in place with the adjustable detent.
