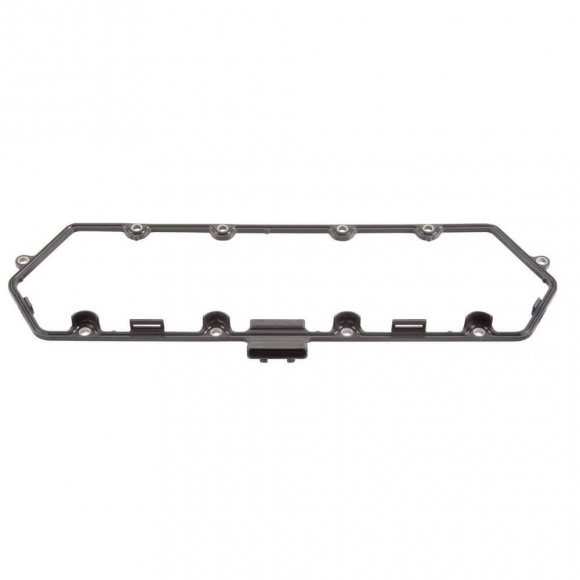

The Ford F81Z-6584-AA is a genuine OEM valve cover gasket engineered for 1999–2003 7.3 Powerstroke diesel engines. Manufactured to rigorous factory equipment specifications, this heavy-duty molded silicone gasket features an integrated 9-pin center pass-through electrical bulkhead to route high-voltage injector signals from the IDM and 12-volt battery power to all four glow plugs on the cylinder bank. Ford Motorcraft incorporates high-durability internal terminal pins designed to withstand constant hot engine oil baths, high under-hood heat cycles, and severe diesel vibrations.

Chronic oil leaks dripping onto hot exhaust manifolds, melted pass-through pins from electrical arcing, cylinder contribution misfire codes (P0261 through P0284), code P1316, dead injectors, and failed glow plugs causing hard cold starts with heavy white smoke are what this gasket cures. On 1999–2003 Super Duty and Excursion trucks, prolonged exposure to heat cycles and oil vapor causes aged plastic bulkheads to weaken and electrical pins to spread, leading to resistance spikes, burnt connector plugs, and complete cylinder dropouts. Replacing a degraded or melted gasket with genuine Ford OEM silicone restores factory-tight perimeter oil sealing and clean, uninterrupted electrical conductivity to the valvetrain. It is sold as a single valve cover gasket with an integrated center 9-pin connector; two gaskets are required to service an entire engine, and internal under-valve-cover harnesses (UVCH), external repair pigtails, and valve cover bolts are sold separately.

It fits 1999–2003 7.3 Powerstroke Ford Super Duty trucks, Excursions, and E-Series vans equipped with the single 9-pin valve cover connector per bank.

Fitment

• 1999–2003 Ford F-250 Super Duty 7.3L Powerstroke
• 1999–2003 Ford F-350 Super Duty 7.3L Powerstroke
• 1999–2003 Ford F-450 / F-550 Super Duty 7.3L Powerstroke
• 2000–2003 Ford Excursion 7.3L Powerstroke
• 1999–2003 Ford E-Series Vans 7.3L Powerstroke
• Genuine OEM Ford Motorcraft replacement part
• Integrated single 9-pin center electrical pass-through connector
• Molded high-temperature silicone rubber perimeter seal
• Replaces Ford OEM part number F81Z-6584-AA
• Single valve cover gasket only (two required per engine)

Disconnect both negative battery cables and clean all road grime and grit from around the perimeter of the valve cover before removal to prevent foreign debris from falling into the exposed valvetrain. Thoroughly inspect both the external harness plug and internal under-valve-cover harness (UVCH) connector for heat discoloration, melting, or spread female pins; plugging burnt or stretched connectors into a brand-new OEM gasket will rapidly destroy the new pass-through pins. Clean the cast iron cylinder head mating deck completely free of oil and debris—install this silicone gasket completely dry without adding any liquid RTV silicone sealant. Set the valve cover in place over the gasket and torque the retaining bolts in a crisscross sequence to the factory specification of 96–100 in-lbs (approximately 8 ft-lbs) to avoid distorting the stamped metal flange.
