Mishimoto Titanium Turbo Blanket (MMTB-F2D-03)

Lower underhood temperatures and protect sensitive engine bay components with the Mishimoto Titanium Turbo Blanket for your 2003–2007 Ford 6.0L Powerstroke. By keeping extreme exhaust heat locked inside the turbine housing, this blanket helps lower engine bay temperatures while keeping exhaust heat in the turbo for a more efficient, better-spooling turbo.

Key Benefits & Features

• Extreme Heat Reduction: Insulates the turbo’s hot side to reduce engine bay temperatures and help protect vital cooling components from excessive heat.
• Better Turbo Efficiency: Keeps exhaust heat in the turbine housing for a more efficient, better-spooling turbo.
• Heavy-Duty Construction: Built with an outer layer of volcanic lava rock and titanium fiber, high-silica interior insulation, and a stainless steel wire mesh inner core.
• Temperature Ratings: Interior layer withstands over 2,300°F; outer layer protects against temperatures over 1,760°F.
• Lifetime Warranty: Backed by the Mishimoto Lifetime Warranty.

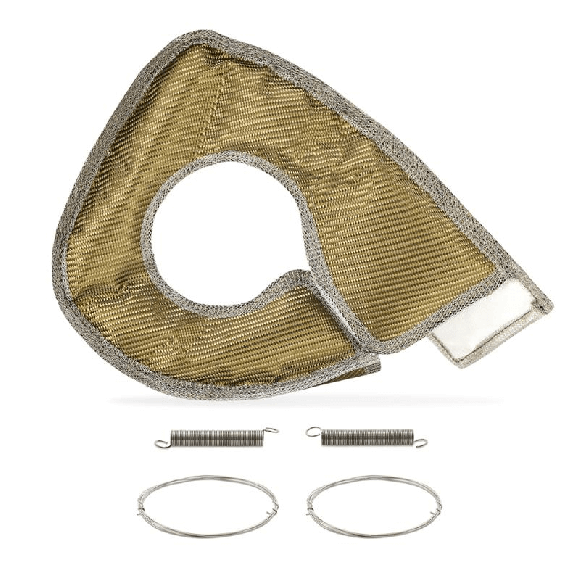

• What's in the Box: (1) direct-fit turbo blanket, (2) stainless-steel springs, (1) spool of stainless-steel wire, (3) mounting bolts, (3) washers and (1) note card.

Fitment

• 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-450 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2005 Ford Excursion 6.0L Powerstroke Turbo Diesel
• Turbo Fitment: Direct fit for the stock turbocharger (Garrett GT3782VA VGT).

Tech & Installation Notes

• Installation: Fits over the turbo’s hot side and secures with the included stainless-steel springs or wire, giving multiple installation options.
• Pro Tip: Install with a cold engine and wear protective gloves; the blanket contains loose glass fibers that may irritate the skin. Some smoking is normal during initial break-in and should subside after several heat cycles. Keep the blanket free of fuel and oil, and make sure it doesn’t contact moving parts. The blanket becomes rigid after heat cycles and isn’t designed to be removed and reinstalled repeatedly.
